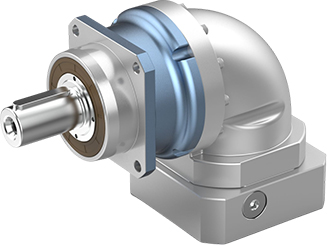

WSHR

Our high-performance gearbox delivers stable, high-speed rotation with minimal vibration, featuring universal installation compatibility. Advanced manufacturing ensures long-term accuracy, enhanced rigidity, and multi-directional load capacity.

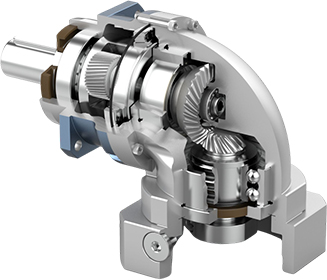

The precision spiral bevel gear input stage reduces noise while improving precision. Compared to competitors, its shorter length enables higher power density—ideal for space-sensitive applications.

產(chǎn)品特點(diǎn)

Smooth High-Speed Operation

Reduced vibration ensures stable performance at elevated speeds.
Universal Mounting Flexibility

Standard interfaces support multiple installation configurations.
Precision Manufacturing

Advanced production methods maintain consistent accuracy.
Enhanced Structural Rigidity

Improved resistance to vibration and multi-directional loads.
Spiral Bevel Input

Quieter operation with minimal gear backlash.
Space-Saving Design

Compact footprint with superior power density versus competitors.

Performance Parameter

Specification	Unit	Stage	Ratio	WSHR060	WSHR075	WSHR100	WSHR140	WSHR180	WSHR210
Rated output torqueT2N	Nm	1	3	50	130	230	400	1000	1800
			4	55	150	330	650	1400	2400
			5	60	160	330	650	1400	2400
			6	55	150	310	600	1100	1950
			7	50	140	300	550	1000	1700
			8	55	150	330	650	1400	2400
			10	60	160	330	650	1400	2400
			12	55	150	310	600	1100	1950
			14	50	140	300	550	1000	1700
			16	40	100	230	450	850	1450
			20	35	90	200	400	760	1350
		2	15	50	130	230	400	1000	1800
			25	60	160	330	650	1400	2400
			30	50	130	230	400	1000	1800
			35	50	140	300	550	1000	1700
			40	55	150	330	650	1400	2400
			50	60	160	330	650	1400	2400
			60	55	150	310	600	1100	1950
			70	50	140	300	550	1000	1700
			80	55	150	330	650	1400	2400
			100	60	160	330	650	1400	2400
			120	55	150	310	600	1100	1950
			140	50	140	300	550	1000	1700
			160	40	100	230	450	850	1450
			200	35	90	200	400	760	1350
Emergency stop torque T2NOT	Nm	1,2	3～200	Triple rated output torque
Rated input speed n1N	rpm	1,2	3～200	3300-4000	3300-4000	2800-4000	2300-3300	2000-2800	1500-2500
Maximum iutput speed n1B	rpm	1,2	3～200	6000	6000	5000/6000	4500/5000	3500/4500	3000/3500
Precision backlash P1	arcmin	1	3～20	≤ 4
Precision backlash P1	arcmin	2	15～200	≤ 7
Standard backlash P2	arcmin	1	3～20	≤ 6
Standard backlash P2	arcmin	2	15～200	≤ 9
Torsional rigidity	Nm/arcmin	1,2	3～200	7	14	32	60	175	410
Max Tilting Moment M2k	Nm	1,2	3～200	160	270	670	1630	3200	5300
Allowable radial force F2aB	N	1,2	3～200	3000	4500	8500	16000	23000	30000
Allowable axial force F2aB	N	1,2	3～200	2400	3350	7000	12000	19000	24000
Lifespan	hr	1,2	3～200	20000
Efficiency	%	1	3～20	≥ 95
Efficiency	%	2	15～200	≥ 92
Weight	kg	1	3～20	2.2	6.7	9.8	22.3	40.5	70.5
Weight	kg	2	15～200	2.8	7.3	11.6	23.6	43.5	74.5
Working temperature	°C	1,2	3～100	-20°C ～ +40°C
Lubricating		1,2	3～100	Synthetic lubricating greas
IP Grade		1,2	3～100	IP65
Installation direction		1,2	3～100	In any direction
Noise level (n1=3000rpm,off load)	dB(A)	1,2	3～100	≤ 63	≤ 65	≤ 68	≤ 70	≤ 72	≤ 74
